- Place of Origin: Guangdong, China (Mainland)
- Brand Name: HSY
- Model Number: HSY-L7000
- Item: Access Control Fingerprint Digital Door Lock
- Size: 185 *72*68.5 mm
- Communication: USB flash disk (L7000-U only )
- Front Panel Colors: Black/Grey
- Password: 100
- Fingerprint templates: 500
- Display: OLED
- Record capacity: 30,000
- Power input: 4*1.5v AA Battery
- Backup Unlock Mechanism: Emergency battery & Mechanical key
Packaging & Delivery
|Packaging Details:||Access Control Fingerprint Digital Door Lock : Standard box.|
HSY-L7000 Detachable Handle Access Control Fingerprint Digital Door Lock with High quality and Top security
The fingerprint lock offers state-of-the-art single door management solution that provides you with unmatched
options that comes with OLED. You can verify a person and open the door with fingerprint and password.
The All-in-one fingerprint lock is very convenient to operate.
Enrollment and management of users are done on the OLED display. There are three user levels available to
manage the system effectively- administrator, supervisor and user. An administrator can do add, delete or
change users very easily at the lock.
With the U.S. standard single latch and reversible handle design, this lock can replace cylindrical knob lock
and can be installed easily.
HSY-L7000 Fingerprint Door Lock Features:
No need mechanical key
Touch of your fingerprint or enter password will open the door. It will give you the freedom of never worrying
about lost, stolen, or forgotten keys ever again.
You don’t need to carry a key. Simply place your finger on the reading sensor and the door unlocks within 1
second of verification
Visual OLED display
Providing you the user-friendly interface. You can simply use our fingerprint lock with ease after following the
operation instructions for once.
With the single latch design, this lock can replace the cylindrical knob lock without having to modify your door.
All you will need is a screw driver and about 30 minutes. So the installation is both simple and quick.
There are super administrator and administrator who can enroll and delete users. No one can get access to
the system that you are in complete control over the system.
Fingerprint templates remain intact after power failure. The templates are protected by special technology that
inhibits the reproduction of the fingerprint image from the template.
The body of lock is made by zinc alloy which is strong enough to protect the system from any considerable
Security alarm activates when the invalid operation is made frequently by an intruder.
3. Other features
500 users or multiple fingers per users can be enrolled. You can register all of your family members including
occasional visitors like your parents.
Style and color
The fingerprint lock is available in modern silver and antique copper color. It fits with any type of door.
Lock is powered by four high-capacity alkaline AA batteries which can last up to 5,000 unlocking activities.
The OLED display will show the status of the batteries power level.
Emergency battery for backup
The lock supports temporary use of external DC power for fingerprint or password matching and unlocking by
connecting a 9V battery to the two access points at the bottom of the lock.
Unlock with an emergency mechanical key
You can open the door using an emergency mechanical key in case the electronic component does not
Access Control Fingerprint Digital Door Lock Specifications:
|Fingerprint Sensor||ZK Optical Sensor|
|Methods||Fingerprint , Password |
|Length of password||6~10 digit|
|Communication||USB flash disk|
|Temperature||0°C ~ 45°C|
|Humidity||20 %~ 80%|
|Power input||4 x 1.5V AA Battery|
|Low battery warning voltage||< 4.8V|
|Backup Unlock Mechanism||Emergency battery & Mechanical key|
|Product Dimension (L x W x H)||185 *72*68.5 mm|

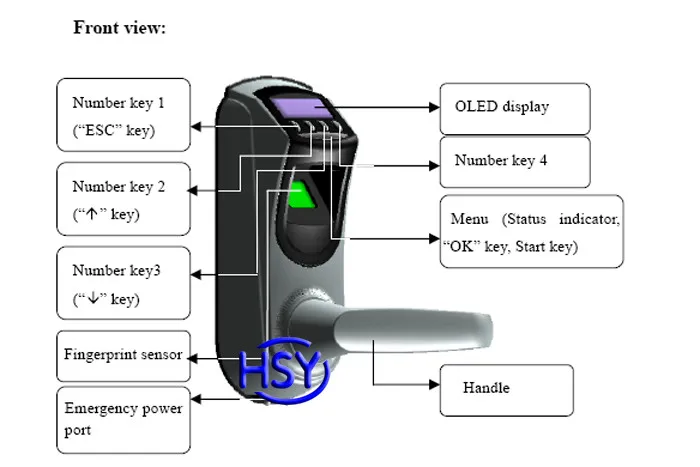

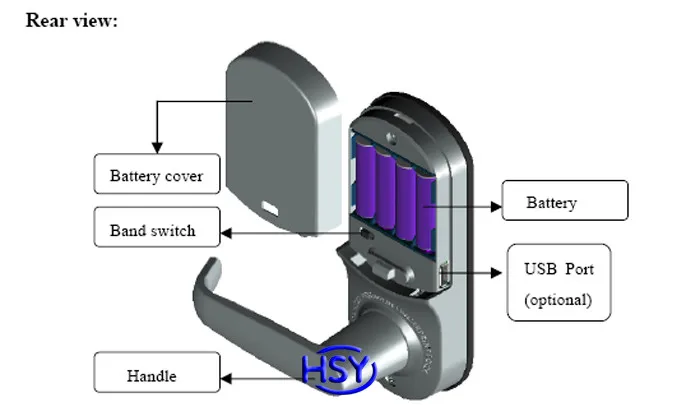

Access Control Fingerprint Digital Door Lock Pictures:
