Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: HSY
  • Model Number: HSY-R143
  • Frequency: 125khz or 13.56mhz
  • Interface: WG26 output standard
  • Read range: 3~10CM
  • Transmitting Distance: WG≤100M
  • Power Supply: DC9~12V
  • Static Power Supply: 50~70mA
  • Recognition Speed: <=5s
  • Color: Black
  • Dimension: 112*75*21 (mm)
  • Product name: Waterproof Wiegand RFID card access control proximity card readers

Packaging & Delivery

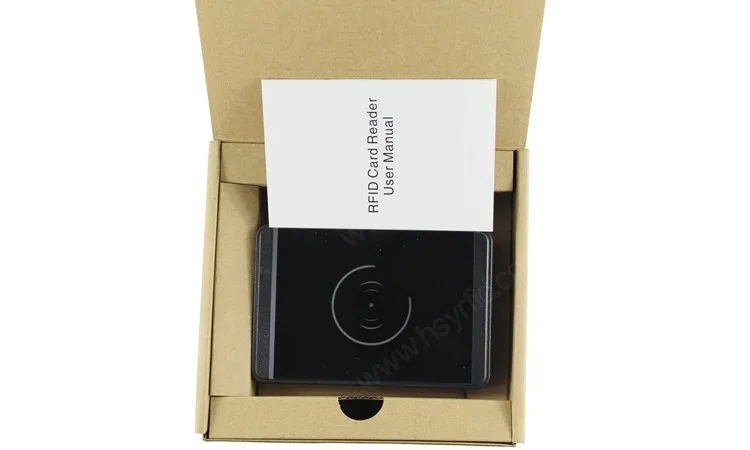

Packaging Details: New Design Waterproof Wiegand Smart Card chip ID Proximity Rfid Reader package:
1pcs per box, 50pcs per carton.
Delivery Detail: 2~7 days
Why Choose us???





New Design Waterproof Wiegand RFID card access control proximity card readers:





Product Description

 Introduction:



RFID card reader is a standard Wiegand26 bit or 34 bit output format and an off-contact high performance reader. Its main use is as a supplementary reading device for the controller which has the wiegand interface. It characters with exquisite appearance,convenient installation and stable characteristics.



Specification:



Output Interface

Standard wiegand26 bit or 34 bit

Operating Frequency

125KHz or 13.56MHz

Reader Card

EM or IC Card

Transmitting Distance

WG≤100M

Proximity Range

3-10cm

Power Supply

DC9~12V

Static Power Supply

50~70mA

Temperature

-25º C to 75º C

Relative Humidity

10%-90%

Recognition Speed

<=5s

LED

Built-in LED (Double Color LED)

Buzzer

Built-in Loud Speaker

Color

Black color

Material

PVC Case Material (Water-Proof Function)

Dimension

112*75*21 (mm)

Package

100pcs per carton. Carton Size: 43.5*56*23(cm)

Audiovisual indication

When a registered card is presented to the reader, the red LED flashes green and the beep sounds





New Design Waterproof Wiegand RFID card access control proximity card readers







Other model HSY-R144K:









Installation:



Using “+” type screw driver to loosen the screw between the panel and motherboard.
And then embed the motherboard to the side wall with the plastic plug and screws.

Notice:


1. Confirm the electric voltage (DC12V) and differentiate positive anode and cathode of power supply

2. When external Power is used, make sure sharing the power with Controller Box or using the same GND

3. The wire connects reader to controller, advise use 8 cores stranded twisted pair cable(among them, three strands are spare, if no need reader show illegal card s by sound and light, LED wire can not be used, data wire Data1 Data0 are twisted pair would be better, we suggest sectional area are 0.22 square millimeter at least. The length should not exceed 100meters.







Company information





Packaging & Shipping
 1pcs per box,50pcs per box.


1. FedEx/DHL/UPS/TNT for samples, Door-to-Door service;
2. By Air or by Sea for bulk goods, for FCL; Airport/ Port receiving;
3. Support Customers specifying freight forwarders or selected shipping methods!


FAQ
1. How we can trust you?
     We are Alibaba Trade Assurance Supplier (US$76,000) and 5 years Gold Supplier.
     if supplier dose not meet the requirements in your contract,Alibaba.com will refund your covered amount.
2.  Why choose us?
        With us make Win-Win Business Situation!!!
        24 *7 hours after sales service
        We can accept "PayPal" the most easy payment way
        Quality Assurance Contract
        Full refund in case of bad quality
        Online supports if any technique issue.
        Small Order or Big Order all accept ( OEM/ODM)
3.  What's your MOQ?
       Big Order or Sample Order all accept by our company.
       We understanding new customers may take sample testing to know our quality and service.
4.  What is the warranty?
      1~2 years warranty from the date of delivery,A lifetime technical support.
      and we will return full money to customer if we did not shipping right items as contract.
5.  What’s your delivery time?
       Around 2~10 working days according to exact order quantity and stock situation.
6.  What’s your Payment?
       PayPal or T/T(Bank transfer) or Western Union also Ali trade Assurance.
7.  Your products can be customized?
        Yes,sure. pls talking to sales about your exact requirements.

        HSY offer the OEM or ODM service.
