Quick Details

  • Place of Origin: Guangdong, China (Mainland)
  • Brand Name: HSY
  • Model Number: HSY-L009
  • Protocol: ISO18000-6B, ISO18000-6C(EPC GEN2)
  • Frequency: Standard ISM 902~928MHz and ISM 865~868MHz
  • Standard interface: WG26/WG34, RS232/RS485
  • Optional interface: TCP/IP(RJ45)
  • Reading Range: around 5~7Meter
  • Antenna: Built-in round polarization antenna,Gain 7dBi
  • Dimension: 240mm * 240mm* 30mm
  • Certification: CE
  • Package: antenna, Demo software, SDK
  • Product name: tcp ip 865mhz or 900mhz Long distance alien 9662 uhf rfid gate reader

Packaging & Delivery

Packaging Details: Wholesale Price tcp ip 865mhz or 900mhz Long distance alien 9662 uhf rfid gate reader package: 1pcs per box,5sets per carton.
Delivery Detail: 3~7 days



Why Choose us???



Wholesale Price tcp ip 865mhz or 900mhz Long distance alien 9662 uhf rfid gate reader Brief Introduction:



The UHF Mid-range Integrated RFID Reader can be compatible with multi-protocol, small volume, quickly read, round-polar antenna is no limited of direction for tag, proof-water, can be used widely in RFID systems, the mainly applying site is:



1. Logistics and warehouse Management: Goods flow, warehouse management, and the flowing management of mail, parcel, luggage.;

2. Intelligent parking Management: Parking management and automatic charge;

3. Productive lines Management: Production process fixed identification;

4. Product counterfeit-proof inspection: Using memory’s write-protect functions inside tags, and identifying with true-false of products;

5. Other fields: Used widely in club management, library, student’ school, consumption management, time management, dinner management, pool management.



Appication area:







Product Description

card reader Technical parameters:

Model No.HSY-L009
ProtocolISO18000-6B, ISO18000-6C (EPC GEN2)
FrequencyStandard ISM 902~928MHz and ISM 865~868MHz, other frequency available
Operation ModeFHSS
RF Power0~30dBm, software programmable
Reading SpeedSoftware Programmable, Average Reading per 64Bits: <6ms
Reading ModeTiming or Touch, Software Programmable
Data PortsStandard: Wiegand26/34, RS485, RS232; software programmable
Custom-optionnal: TCP/IP (RJ45 )
Data Input PortTrigger input one team
Reading RangeMore then 6 m
Reading ClueBuzzer and LED
AntennaBuilt-in round polarization antenna, Gain 7dBi
Power SupplyDC+9V direct current power(power adapter)
Dimension240mm*240mm*30mm
Weight2 Kg
Operation Temp-20 Degree ~+80 Degree





Wholesale Price tcp ip 865mhz or 900mhz Long distance alien 9662 uhf rfid gate reader more views:







One set included:







Installation Instruction:





The reading distance of the Frank fitting is shorter, but is the easiest and basic mounting installation. (Depending on actual application, this setting could be best.)



The reading distance of the Crutch setting is farther, but is more complex to install.
(Depending on actual application, this setting could be best)



The Crutch setting is an example of a typical Vehicle Identification Application.









Demo software config:



We offer the Config.exe program, which is used to configure the reader’s working parameter. The interface of config.exe is below:



Software Development:



Users can make the secondary development of application software according to practical needs. We provide SDK based on C language, which supports VC++, VB, Dephi and C+ Builder, etc. Please refer to Long range integrated reader SDK Instruction.





UHF PVC card







UHF windshields adhesive tag (glass interface)









Company information







Packing & Shipping

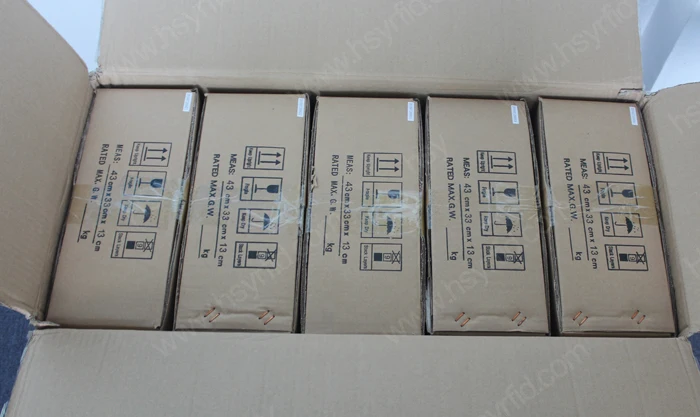

  1set per box, 5sets per carton.

1. FedEx/DHL/UPS/TNT for samples, Door-to-Door service;
2. By Air or by Sea for bulk goods, for FCL; Airport/ Port receiving;
3. Support Customers specifying freight forwarders or selected shipping methods!
